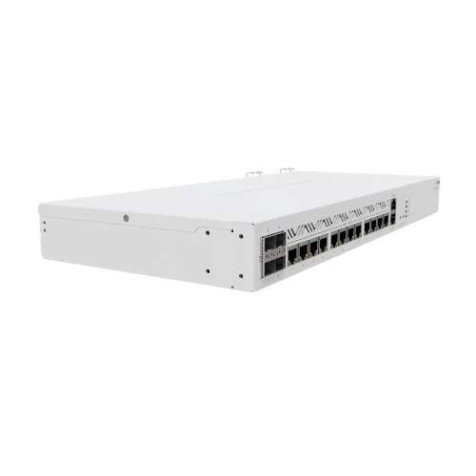

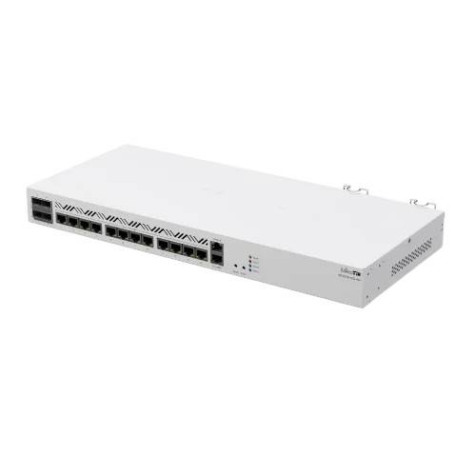

MikroTik CCR2116-12G-4S+ | High-Performance 10G Router for ISPs & Enterprises
Unleash the Power of Next-Gen 10G Networking
The MikroTik CCR2116-12G-4S+ is a cutting-edge, high-performance router designed to push the limits of 10G networking. Powered by the Amazon Annapurna Labs AL73400 CPU with 16 cores running at 2 GHz, this ISP-grade router delivers unmatched speed, efficiency, and reliability. It sets a new standard in single-core performance, ideal for heavy per-connection operations like complex firewall rules, BGP routing, and QoS configurations.
Powerful 16-Core CPU – At least 15% faster single-core performance than previous models
Layer 3 Hardware Offloading – Accelerates routing performance & reduces CPU load
4 x 10G SFP+ Ports – High-speed fiber connectivity with dedicated full-duplex lines
12 x Gigabit Ethernet Ports – Seamless network integration with switch-like throughput
ISP-Level Reliability – Dual-redundant power supply for uninterrupted uptime
Key Features
- Ultra-Fast Performance – 16-core, 2GHz CPU with RouterOS v7 for handling heavy workloads
- Superior Networking – 4 x 10G SFP+ ports & 12 x Gigabit Ethernet ports for optimal throughput
- No Bottlenecks – Each port group has a dedicated full-duplex connection to the switch chip
- Built for ISPs & Large Enterprises – Ideal for massive BGP sessions, dynamic routing, and firewall rules
- High-Speed Switching – Marvell Aldrin switch chip ensures seamless data transfer
- Reliable & Redundant – Dual power supplies eliminate downtime concerns
- Future-Proof Design – RouterOS v7 support, IPsec hardware acceleration, and M.2 slot for expansions
- Advanced Monitoring – CPU & PCB temperature sensors for real-time diagnostics
Technical Specifications
- Product Code: CCR2116-12G-4S+
- Architecture: ARM 64-bit
- CPU: Amazon Annapurna Labs AL73400 (16 cores @ 2GHz)
- Switch Chip Model: Marvell 98DX3255
- RAM: 16GB
- Storage: 128MB NAND
- RouterOS License: Level 6 (supports RouterOS v7 only)
- MTBF: ~200,000 hours @ 25°C
- Operating Temperature: -20°C to 60°C
- IPsec Hardware Acceleration: Yes

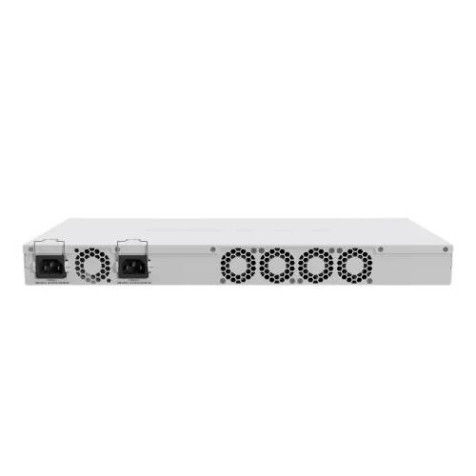

Power & Cooling
- Power Inputs: 2 x AC inputs (100-240V)
- Max Power Consumption: 83W (60W without attachments)
- Cooling: 4 high-efficiency fans

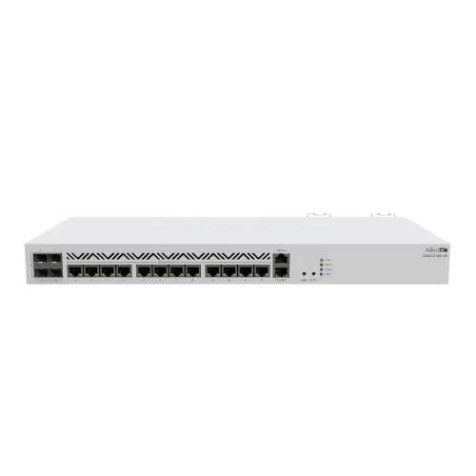

Connectivity
- Ethernet Ports: 13 x 10/100/1000 Mbps
- Fiber Ports: 4 x 10G SFP+
- Serial Console Port: RJ45
- M.2 Slot: 1 for additional storage/expansion
Ideal Use Cases
- Large ISPs & Service Providers – Handles massive BGP sessions & complex routing
- Enterprise Data Centers – Supports 10G high-speed networking & firewall security
- Cloud & Virtualization – Ensures efficient traffic management for cloud environments
- High-Density Networks – Optimized for multi-port switching with Layer 3 hardware offloading
- Redundant & Mission-Critical Applications – Dual power supply for maximum uptime
Why Choose the MikroTik CCR2116-12G-4S+?
- Extreme Processing Power – 16-core, 2GHz CPU with optimized per-connection performance
- Blazing-Fast 10G Networking – 4 x SFP+ 10G ports + 12 x Gigabit Ethernet ports
- No Bottlenecks – Full-duplex connections to a high-speed switch chip
- Robust & Reliable – Dual-redundant power supplies & multiple cooling fans
- Future-Proof – Designed for RouterOS v7 with advanced networking features
